Escalera Motorized Stair Climber With Winch Lift (Removable & Electric) - RLA-EW

  • Image 1
  • Escalera RLA-EW Motorized Stair Climber With Winch Lift (Removable & Electric) Hand Truck

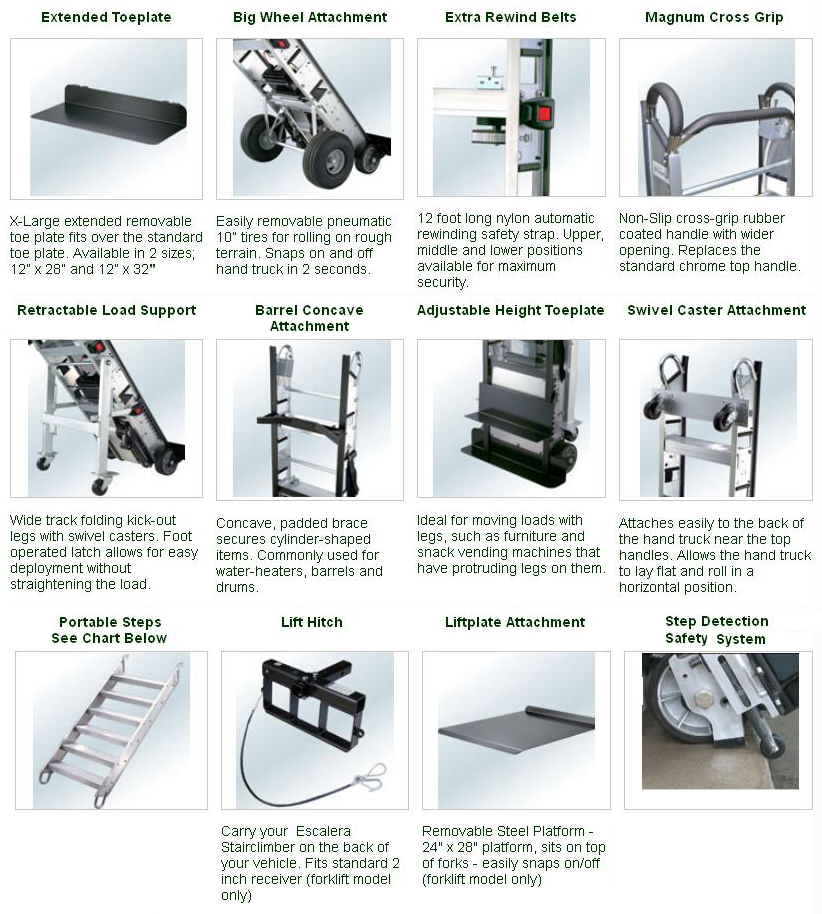

Extended Toeplate, Big wheel attachment, Extra rewind belts, Magnum cross grip, Retractable load support, Barrel concave attachment, Adjustable Height Toeplate, Swivel caster Attachment, Portable steps, Lift Hitch, Liftplate attachment, Desktop copier Dolly, step detection safety system
  • Image 3
198.00 LBS
Free Shipping

Product Description

The Escalera Motorized Stair Climber (Removable) - RLA-EW with battery operated winch and Removable Lift Attachment which side frames made from tough tempered aluminum alloy and alos have steel lift frames, with 28 inch long forks, for raising loads up to 54 inches - high enough to load or unload a semi truck! All Escalera Forklifts have a 1200 pound maximum capacity. 2 different models, the removable winch/lift model and the non-removable model. And then there is an option of a hand cranked lift or an electric winch lift.

The ESCALERA STAIRCAT is proudly made in the United States of America. Used around the world by many different types of businesses, warehouses and private companies, the ESCLAERA STAIRCAT is an exceptional piece of modern day equipment. Whether there is product that needs to be moved across a flat surface or up several flights of stairs, this hand truck can do the job. escalera-motorized-stair-climber-with-winch-lift-3.jpg

Specification :

  • Forklift Type : Removable & Electric
  • Model : RLA-EW
  • Winch : Electric
  • Capacity : 1200 lb
  • Height : 68”
  • Width : 24”
  • Depth : 38.25”
  • Weight : 198 lb
  • 1 Year Warranty Included

Features :

  • Ergonomic, plated handles, angled for easier load handling. Magnum Handle upgrades available.
  • Steel lift frame - 1200 lb capacity - 54 inch lift height - 28.25 inch forks
  • Ergonomic placement of multiple hand holds give you a place to hold where you need it.
  • Fastest, easiest to use, automatic rewinding safety strap available. Upper and lower straps optional.
  • Non-marking lifting feet and 6 inch wheels with sealed ball bearings protect all step and floor surfaces for years of trouble-free use.
  • Extraordinary gear box operated with maximum efficiency. Durable, serviceable, and built for years of service.

Standard Included Accessories

  • RW-1 auto-rewinding safety strap
  • Sealed gel-cell battery
  • Automatic battery charger.


Moving these large items can easily be done with one (1) worker, trained on using the stair climber safely.  The ESCALERA STAIR CLIMBER works like a robot, making a second, third or fourth employee not necessary. The following Videos show on how these amazing stair climbers tackle any number of jobs are also easily available.  The videos show in great detail how the ESCALERA works, moving up stairs and down stairs.

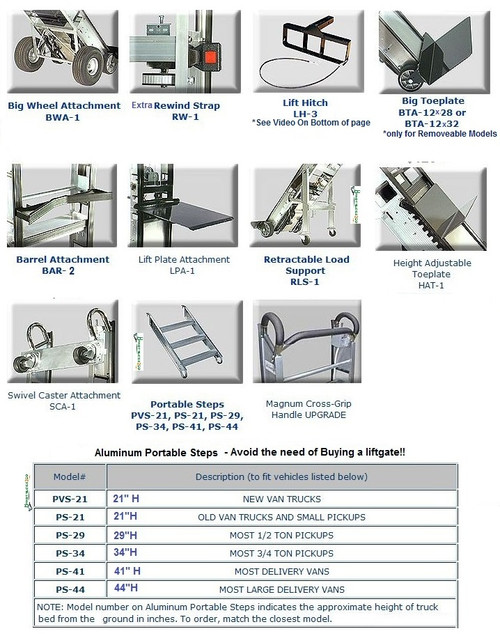

Escalera Accessories

Step Detection System

Warranty Information

Escalera Inc. warrants the stairclimbing handtrucks manufactured by them-when lubricated and operated as recommended-to be free from defect in material and workmanship, for a period of one year after delivery. All warranty items are to be returned to Escalera freight prepaid for inspection. If the item is determined to be defective, Escalera will repair or replace the item.

Alterations and/or careless or improper usage void this warranty. A nominal charge will be made for repair of units which are not operable for reasons other than defects in workmanship or material.

Customer is responsible for shipping costs to and from repair facility.


Usually ships in 7-10 Days, Transit time extra
