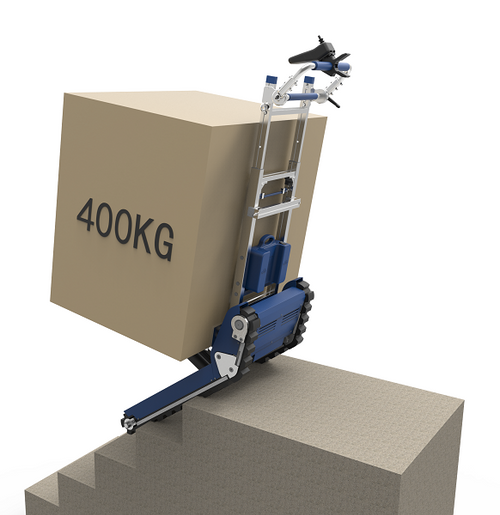

XSTO heavy duty stair climbing dolly CT420 is with a capacity of up to 925 lbs, it allows you to transport cargo upstairs and downstairs by a single person. It can easily keep balance when climbing by automatically adjusting the cargo’s gravity center, and it can also move easily on the flat ground with its flat ground mode, which makes moving safer and easier. It is suitable for transport precision instruments, vending machines, pianos, big safes, gas cylinders, building materials, engines, security check machines, etc.

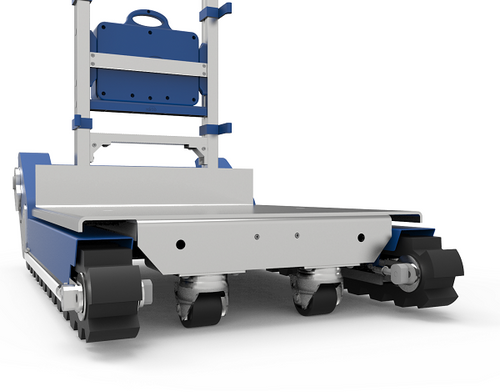

XSTO CT420 is a semi automatic stair climber which can adjust the tilt angle on stairs automatically. It is equipped with the non-slipping and non-marking independent crawler track.
Please watch the following video to see a demonstration of the Optional Electric Lifting System:
Overall Specifications:
- Maximum Weight Capacity: 925 lbs
- Battery Capacity: 1,404-1,908 Steps

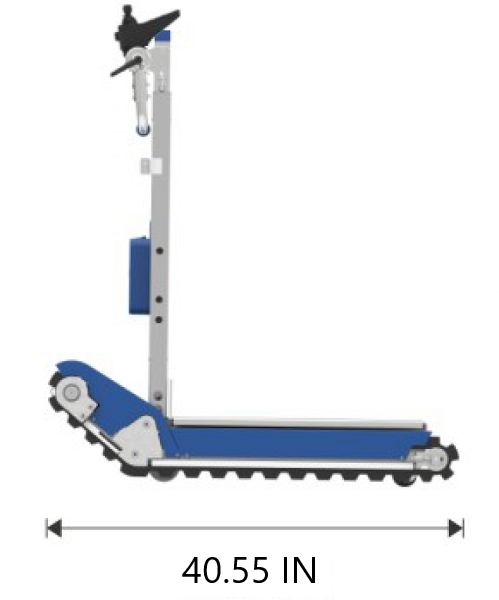

- Platform Size (Length x Width): 40.55"L x 24.17"W
- Minimum Landing Size (Length x Width): 59.06”L x 59.06”W (Stair Corner)
- Staircase Requirement: Height <8.27”, Tilt Angle ≤37°
- Turning Radius: 59.06”
- Low Speed: 10 Steps/Min
- High Speed: 16 Steps/Min
- Motor Type: DC
- Noise Volume: <70dB
- Protection Grade: IP54
- Unit Size (Length x Width x Height): 40.55”L x 24.17”W x 63.78”H
- Fold Size (Length x Width x Height): 40.55”L x 24.17”W x 44.49”H
- Battery Type: Lithium-Battery
- Charging Time: 4.5 Hours
- Charging Voltage: 100V-240V
- Brake: Yes
- Battery Weight: 7 lbs
- Unit Weight: 203 lbs
Standard Features and Details:
Available Options & Accessories:
Spare BatteryGet an additional battery for extended usage on the Powered Stair Climbers. These heavy duty lithium-batteries are energy efficient and quick charging requiring only around 3 hours to fully recharge. Each battery can last up to 1,080-2,430 steps or 60 to 135 floors. |
 |
Electric Lifting SystemThis is a steel light weight structure with strong power, needs additional drive by rechargeable battery, best mate for CT420. This electric mini lifter is a kind of equipment that can lift heavy cargo in different shapes and sizes. The capacity is 925 lbs and a lift height of 9.84" which makes it a very practical accessory for heavy load stair climber CT420. With only 9 KG/PC self-weight, It is light and convenient to carry around and has a wide range of applications. It has a total weight of 40 lbs and an operating voltage of 24V. Please note that this product does not include a battery, so you need to purchase it separately or use a common battery from CT420. |
 |
