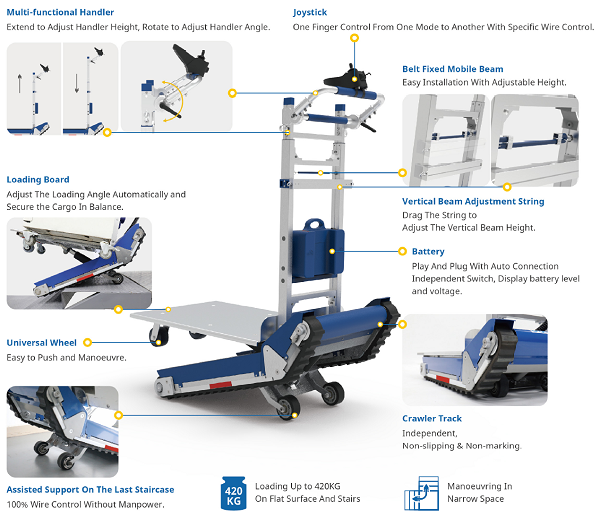

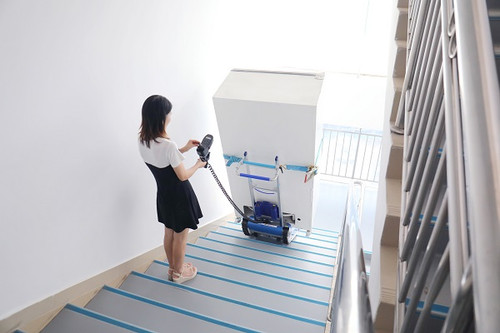

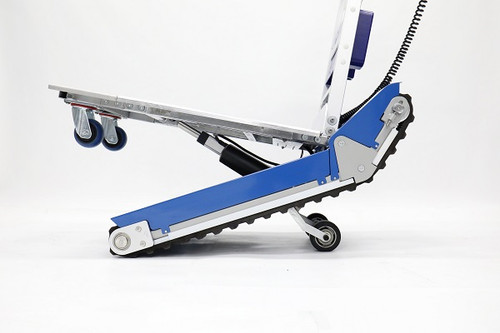

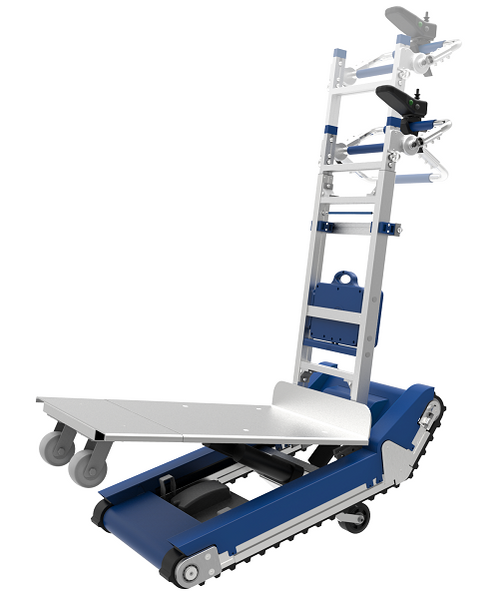

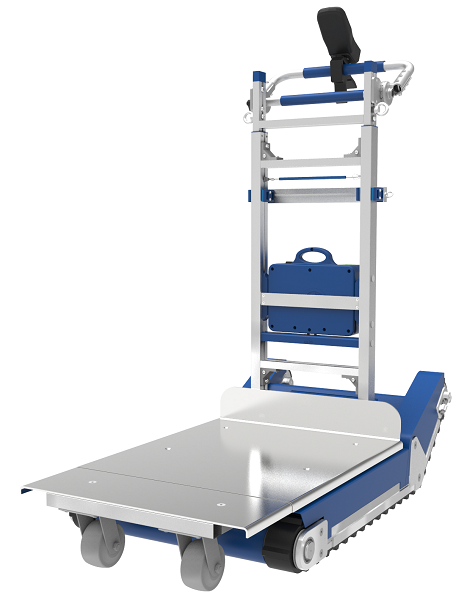

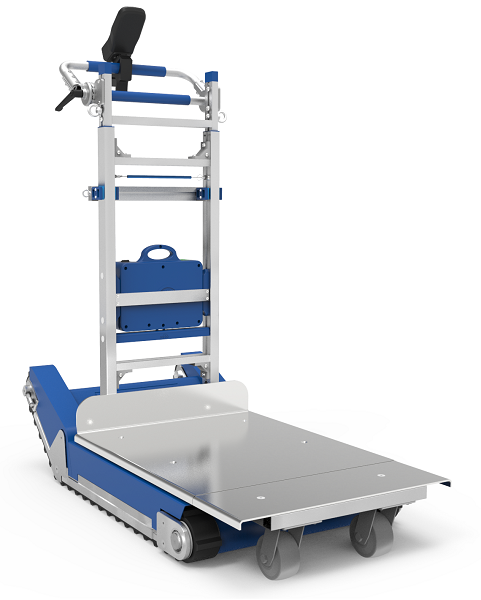

XSTO stair climber CT420S is an automatic stair climbing trolley which loads up to 925 lbs cargo on stairs and it is the premium version of XSTO CT420, equipped with independent non-marking and non-slipping crawler track, it can maneuver in narrow stairs corner and easy movement on flat surfaces and stairs, both indoors and outdoors.

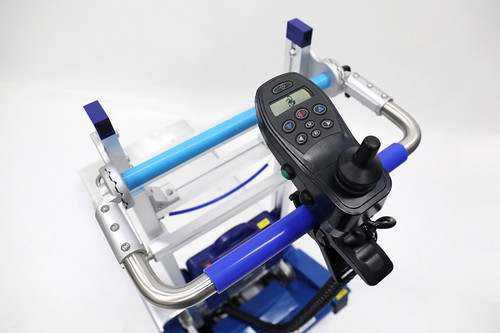

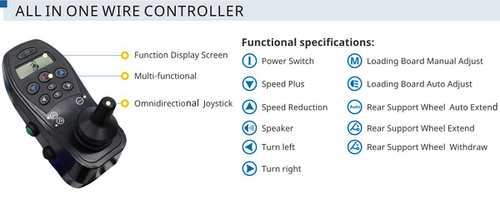

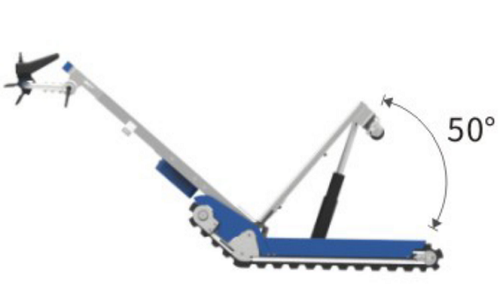

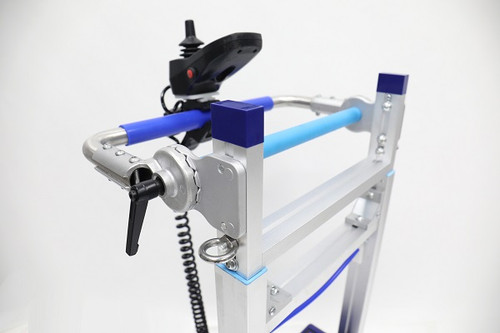

Operated with all-in-one wire remote controller, the one finger control switch from one working mode to another and the intelligent loading board can automatically adjust load tilt angle on Stairs. This model is capable of carrying all sorts of items from Precision Instrument, Large Home Appliance, Office Equipment, Vending Machine, Safety Box, Oil Drum and more making it extremely versatile and flexible.
Please watch the following video to see a demonstration of the Optional Electric Lifting System:
Overall Specifications:
- Maximum Weight Capacity: 925 lbs
- Battery Capacity: 1,400-1,600 Steps
- Platform Size (Length x Width): 46.06"L x 24.17"W
- Minimum Landing Size (Length x Width): 59"L x 59"W (Stair Corner)
- Staircase Requirement: Height <8.27”
- Upstairs Speed (Full Load): 10 Steps/Min(Low Speed), 13 Steps/Min(High Speed)
- Downstairs Speed (Full Load): 13 Steps/Min(Low Speed), 16 Steps/Min(High Speed)
- Motor Type: DC
- Noise Volume: <70dB
- Protection Grade: IP54

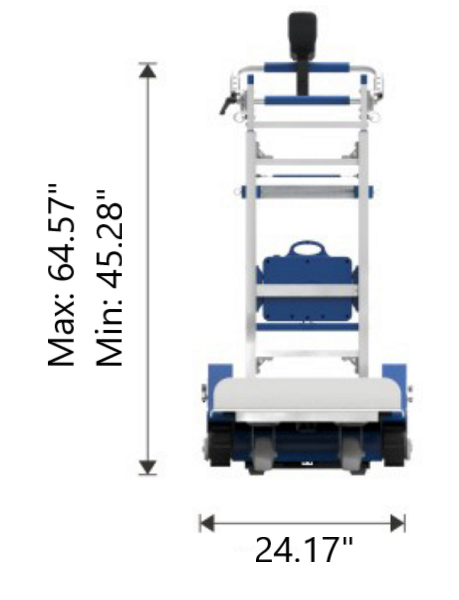

- Unit Size (Length x Width x Height): 46.06”L x 24.17”W x 64.57”H
- Fold Size (Length x Width x Height): 46.06”L x 24.17”W x 45.28”H
- Battery Type: Lithium-Battery
- Charging Time: 4.5 Hours
- Charging Voltage: 100V-240V
- Brake: Yes
- Unit Weight: 216 lbs

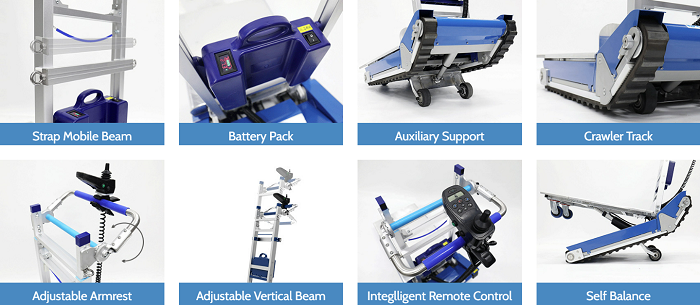

Standard Features and Details:
Available Options & Accessories:
Spare BatteryGet an additional battery for extended usage on the Powered Stair Climbers. These heavy duty lithium-batteries are energy efficient and quick charging requiring only around 3 hours to fully recharge. Each battery can last up to 1,080-2,430 steps or 60 to 135 floors. |
 |

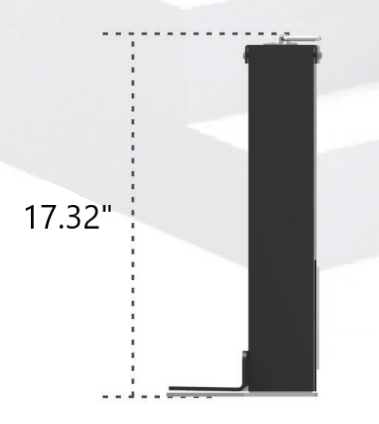

Electric Lifting SystemThis is a steel light weight structure with strong power, needs additional drive by rechargeable battery, best mate for CT420. This electric mini lifter is a kind of equipment that can lift heavy cargo in different shapes and sizes. The capacity is 925 lbs and a lift height of 9.84" which makes it a very practical accessory for heavy load stair climber CT420. With only 9 KG/PC self-weight, It is light and convenient to carry around and has a wide range of applications. It has a total weight of 40 lbs and an operating voltage of 24V. Please note that this product does not include a battery, so you need to purchase it separately or use a common battery from CT420. |
 |
