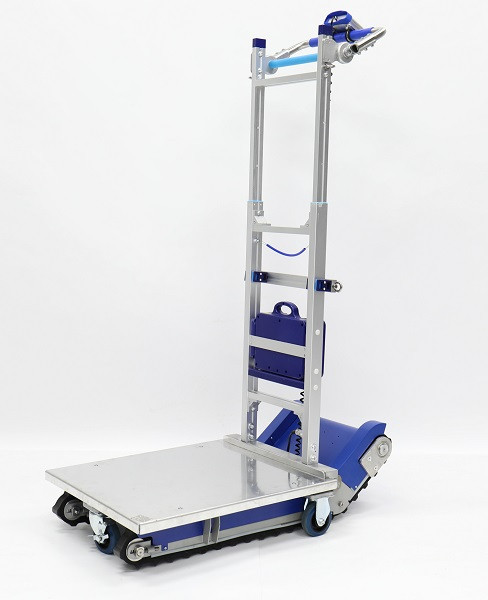

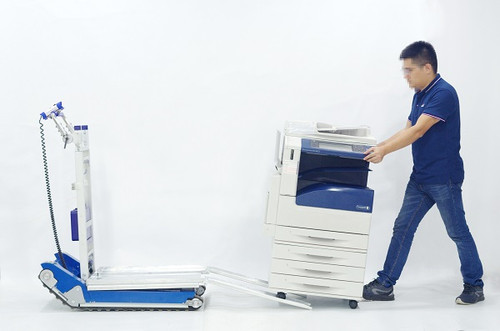

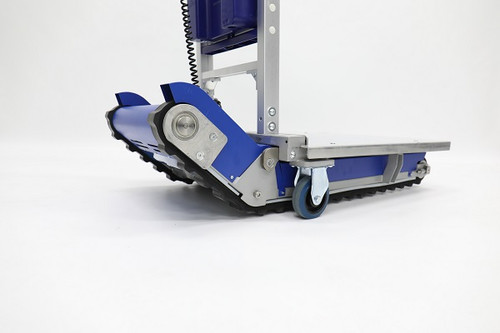

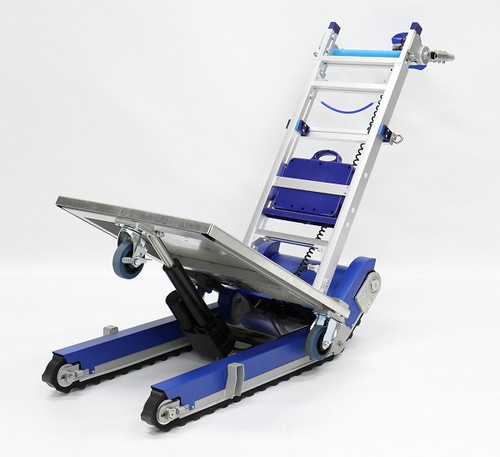

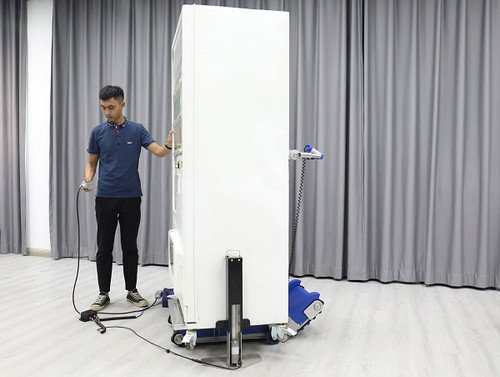

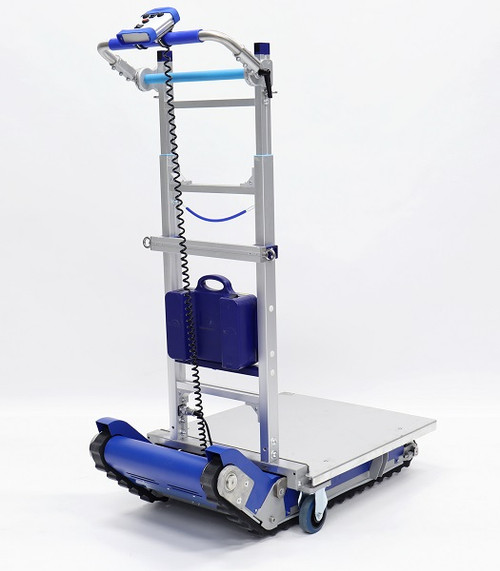

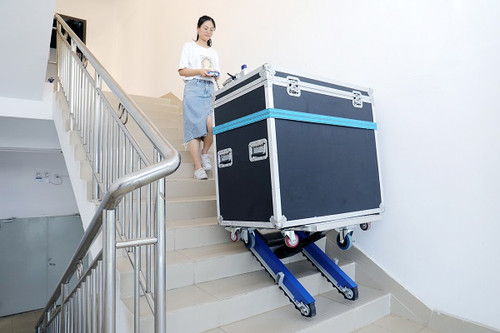

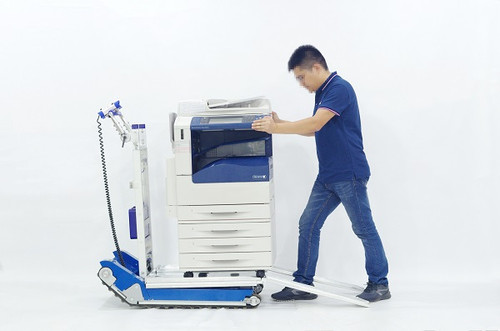

The XSTO CT300 is a semi automatic stair climber rated with a maximum weight capacity of 660 lbs which can adjust the tilt angle on stairs automatically. It is equipped with the non-slipping and non-marking independent crawler track. It is best suited for transporting heavy and bulky loads such as precision intruments, Lge Home Appliance, Office Equipment, Vending Machine, Safety Box and Oil Drum.
This powered stair climber traces the center of gravity on stairs with its sensors. It is easy to use and operated by a remote wire controller. Furthermore, it can manoeure in small stairs corner and cross the corner easily.
Please watch the following video to see a demonstration of the Optional Electric Lifting System:
Overall Specifications:
- Maximum Weight Capacity: 660 lbs
- Battery Capacity: 1,300-1,600 Steps
- Platform Size (Length x Width): 40.55"L x 23.62"W
- Minimum Landing Size for Turning (Length x Width): 59.06"L x 59.06"W (Stair Corner)
- Staircase Requirement: Height <8.27”
- Upstairs Speed (Full Load): 16 Steps/Min
- Downstairs Speed (Full Load): 19 Steps/Min
- Motor Type: DC
- Noise Volume: <70dB
- Protection Grade: IP54
- Unit Size (Length x Width x Height): 40.55”L x 23.62"W x 60.24”H
- Fold Size (Length x Width x Height): 40.55”L x 23.62”W x 45.47”H
- Battery Type: Lithium-Battery
- Charging Time: 4.5 Hours
- Charging Voltage: 100V-240V
- Brake: Yes
- Unit Weight: 139 lbs

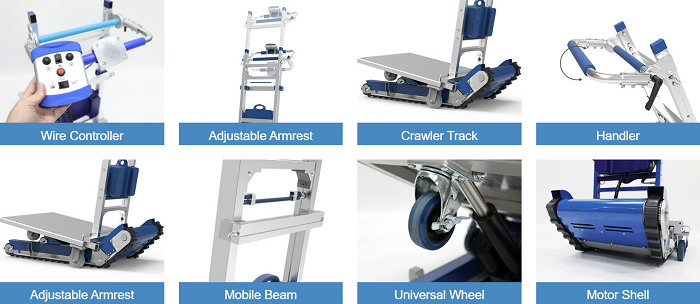

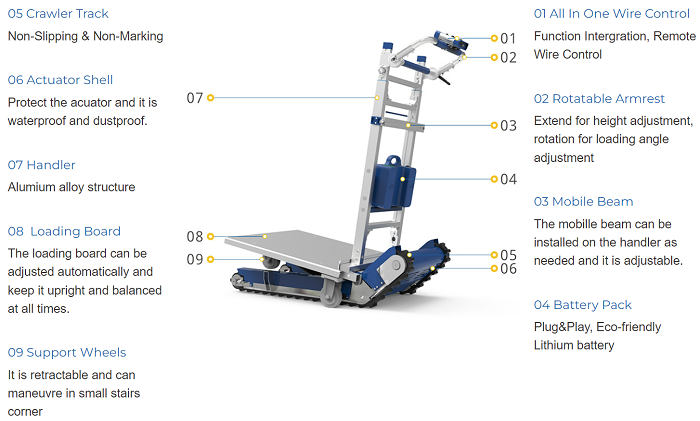

Standard Features and Details:
Available Options & Accessories:

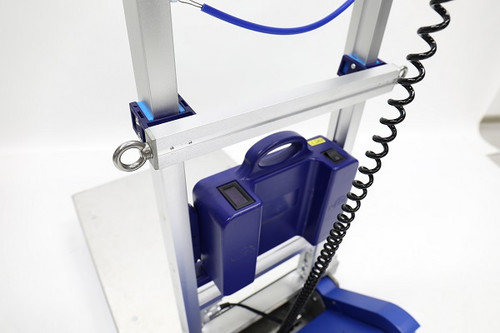

Spare BatteryGet an additional battery for extended usage on the Powered Stair Climbers. These heavy duty lithium-batteries are energy efficient and quick charging requiring only around 3 hours to fully recharge. Each battery can last up to 1,080-2,430 steps or 60 to 135 floors. |
 |

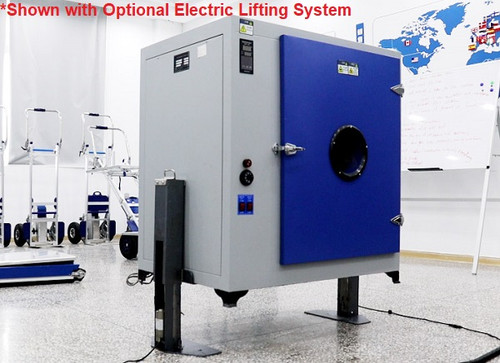

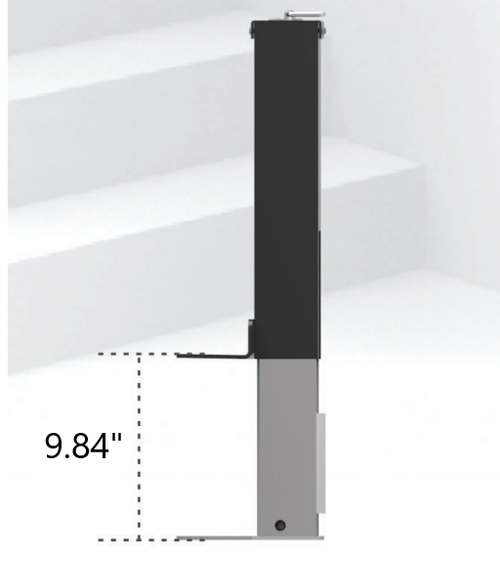

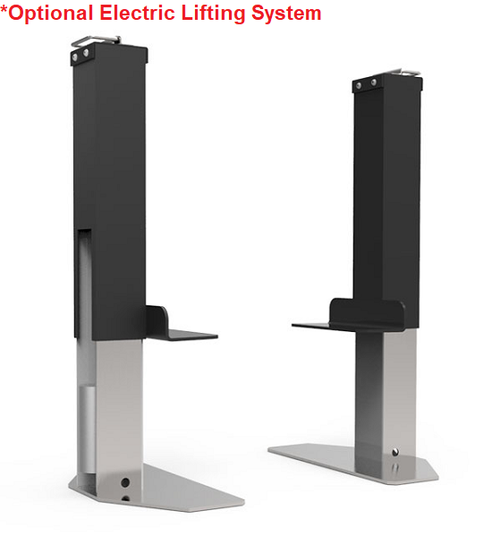

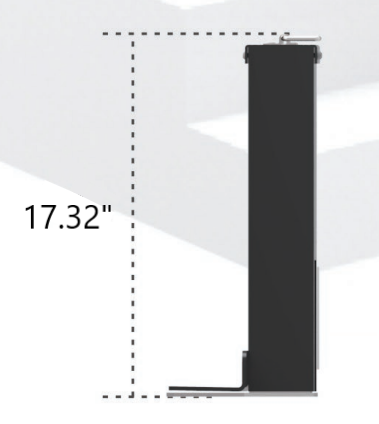

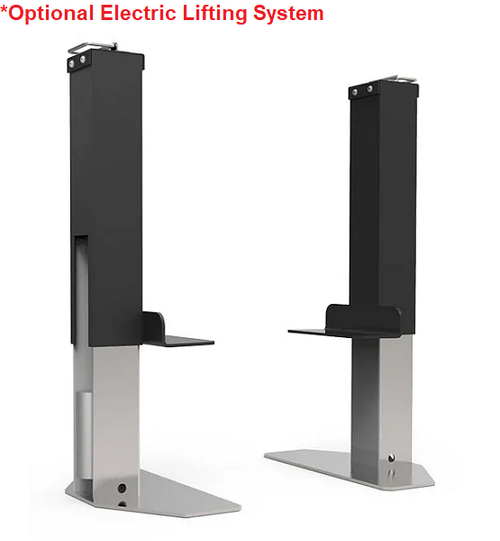

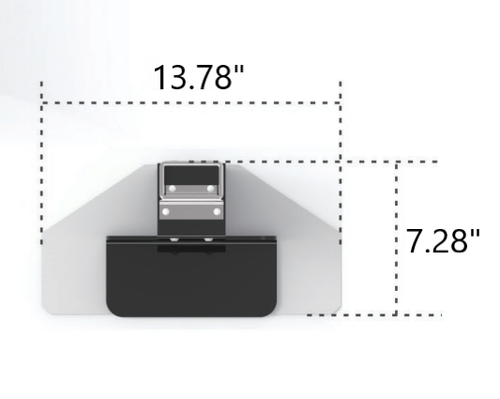

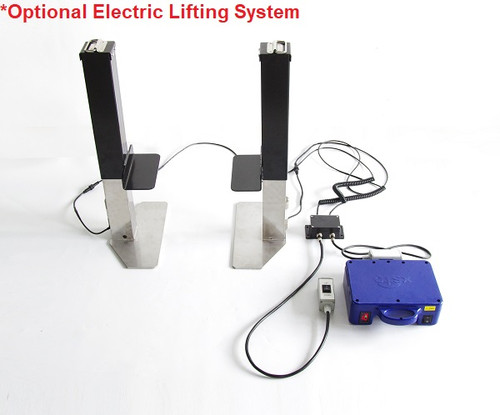

Electric Lifting SystemThis is a steel light weight structure with strong power, needs additional drive by rechargeable battery, best mate for CT420. This electric mini lifter is a kind of equipment that can lift heavy cargo in different shapes and sizes. The capacity is 925 lbs and a lift height of 9.84" which makes it a very practical accessory for heavy load stair climber CT420. With only 9 KG/PC self-weight, It is light and convenient to carry around and has a wide range of applications. It has a total weight of 40 lbs and an operating voltage of 24V. Please note that this product does not include a battery, so you need to purchase it separately or use a common battery from CT420. |
 |
